Changing Final Drive Oil

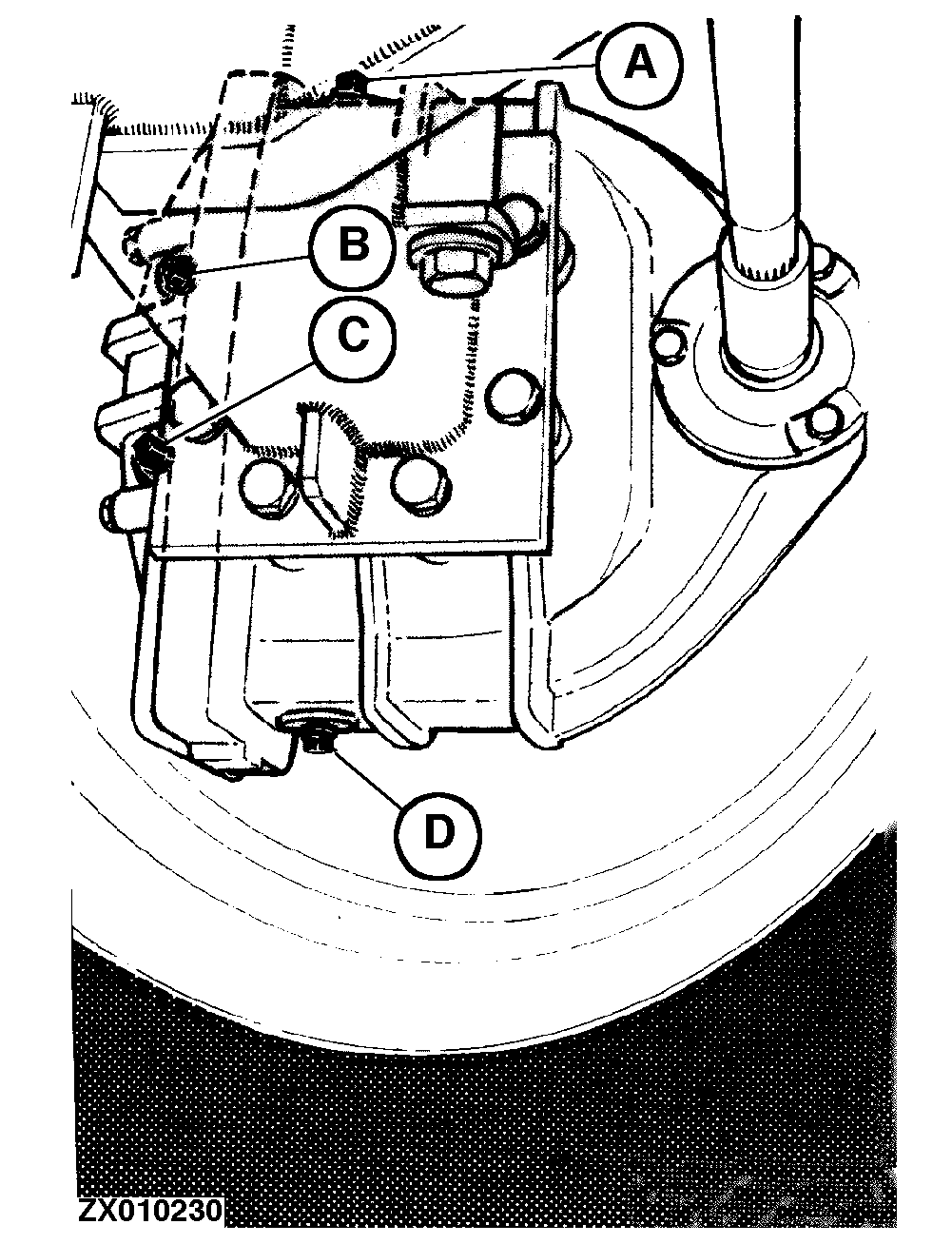

Remove drain plug (D) to drain oil. Open filler cap (A).

After draining the oil, close drain plug (D) and remove oil level plug (C).

Fill up until oil reaches the level. Install oil level plug. Close filler cap.

IMPORTANT: Only use recommended oil and quantity. Carefully clean area around filler opening.

Recommended oil - SAE 90.

Consult final drive oil capacity in the "Specifications" section.

A-Oil filler neck
B-Vent plug
C-Oil level plug
D-Drain plug

OU64006,00000AB -19-21SEP05-1/1
