Cleaning System Fan

causym CAUTION: Danger of accidents! Keep away from moving parts.

IMPORTANT: The adjustment should be carried out with engine running and threshing unit engaged.

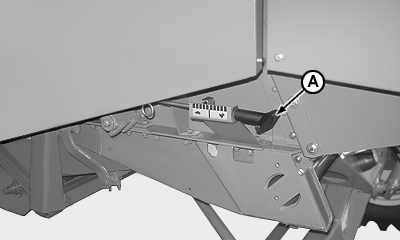

Adjust fan speed through knob (A).

Increase speed -Turn knob counterclockwise

Decrease speed -Turn knob clockwise

CQ265710

OU64006,00000AF -19-09JUN06-1/3

Adjusting air flow deflectors


A-Lower baffle
B-Upper baffle

CQ265690

OU64006,00000AF -19-09JUN06-2/3

Cleaning Shoe Adjustment


A-Chaffer extension adjustment lever
B-Chaffer adjustment lever
C-Grain sieve adjustment lever

CQ265720
