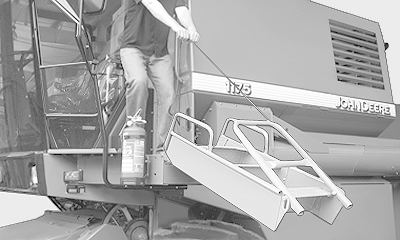

Operator's Station Access Ladder

With the ladder lowered the operator's station can be comfortably accessed.

causym CAUTION: Always lower ladder carefully, using the rope. Before lowering ladder make sure there are no persons located in the area that might be hit by it.

CQ265820

OU64006,00000B1 -19-09JUN06-1/3

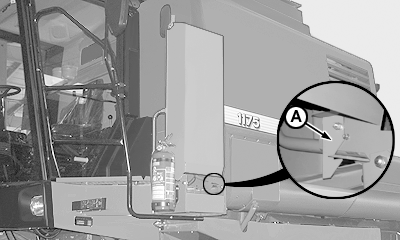

Securing the Ladder

causym CAUTION: When travelling on public roads, first raise ladder and make sure it is secured by lock (A).

CQ265830

OU64006,00000B1 -19-09JUN06-2/3

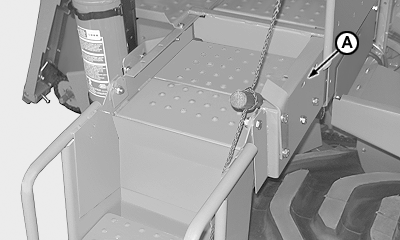

Adjusting the Ladder

The ladder has two mounting positions: one more inward (with narrow tires) and one more outward (with large tires or tracks). To change the position move intermediate section (A) of ladder (it will be necessary to remove the eight attaching bolts).

CQ265760

OU64006,00000B1 -19-09JUN06-3/3
