Opening Right-Hand Side Shields

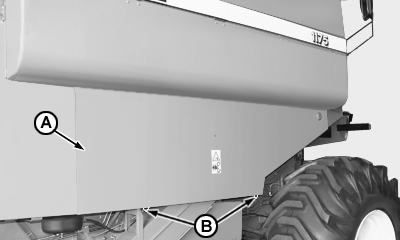

Right-Hand Side Shield

Pull two clips (B) downward.

Protecting shield (A) will lock automatically after being completely suspended.

NOTE: To unlock it suspend it slightly with one hand. At the same time push support upwards with the other hand and unlock it.

OU64006,00000B2 -19-31MAR06-1/2

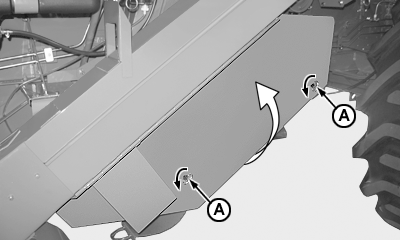

Fan Protection Shield

Release locks (A) and suspend shield.

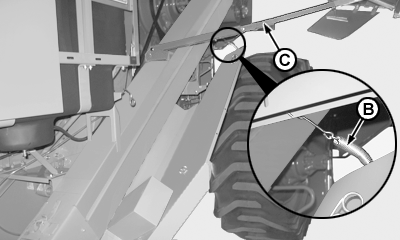

Secure to support (C) through hook (B), as shown

OU64006,00000B2 -19-31MAR06-2/2
