Access to Engine

Access to the engine is via the rear service deck.

Release lock (A), open cover (B) and position ladder (C).

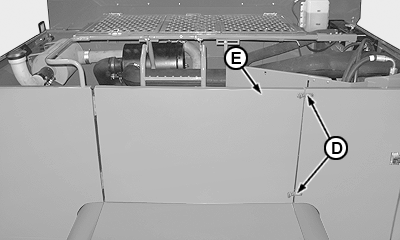

Release locks (D) and open shield (E).

OU64006,00000B3 -19-30MAR06-1/1
