If cab i s not cooled properly it is necessary to examine evaporator fins (F).

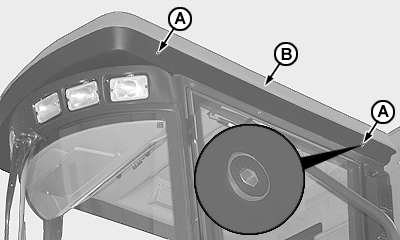

1. Remove cab roof (B) by removing all screws (A) on both sides of combine.

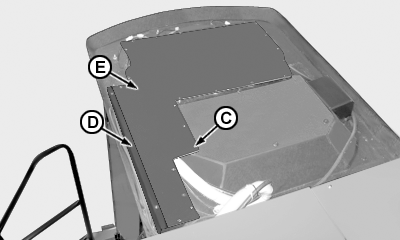

2. Remove all screws (C) and remove angle bar (D) and cover (E).

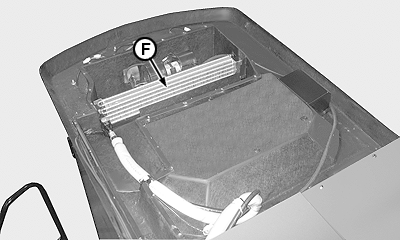

3. Clean evaporator fins (F) using compressed air.

Avoid restriction of condensation water drain hoses. Clean them with compressed air.

Evaporator fins must be in perfect condition.

OU64006,00000B5 -19-06MAR06-1/1
