Fuse and Relay Box

Fuse and relay boxes are located on the right-hand side of the operator's station.

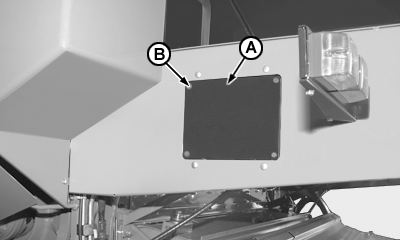

Press in screws (B) and turn to open cover (A).

NOTE: There is another fuse box in the cab.
