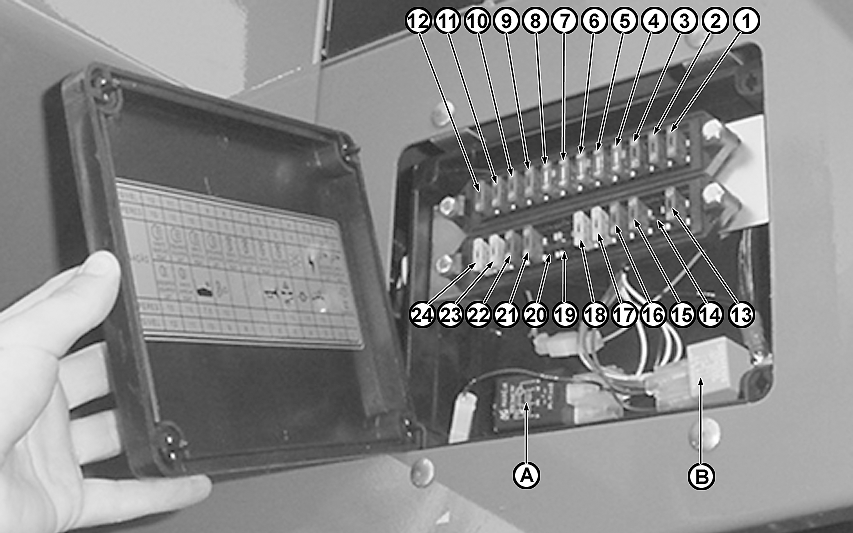

1-Right-hand roof or cab work light (10A)
2-Left-hand roof or cab work light (10A)
3-Main / starter key (7.5A)
4-Panel lighting (5A)
5-Left-hand tail light (5A)
6-Right-hand tail light (5A)
7-Left-hand front clearance light (5A)
8-Right-hand front clearance light (5A)
|
9-Left-hand headlight - low-beam (10A)
10-Right-hand headlight - low-beam (10A)
11-Left-hand headlight - full-beam (10A)
12-Right-hand headlight - full-beam (10A)
13-Power supply for panel gauges (7.5A)
14-Standby
|
15-Automatic Cutting Height Control (10A)
16-Parking and service brake lights (10A)
17-Hazard warning and turn signal lights (15A)
18-Horn (15A)
19-Standby
20-Standby
21-Unloading auger light (10A)
|
22-Grain tank internal light (7.5A)
23-Right-hand auxiliary work light (15A)
24-Left-hand auxiliary work light (15A)
A-Hazard warning lights and buzzer relay
B-Horn and straw walker/chopper buzzer relay
|
