Coolant Level

IMPORTANT: Maintenance work on the air conditioning system must be carried out by your John Deere dealer.

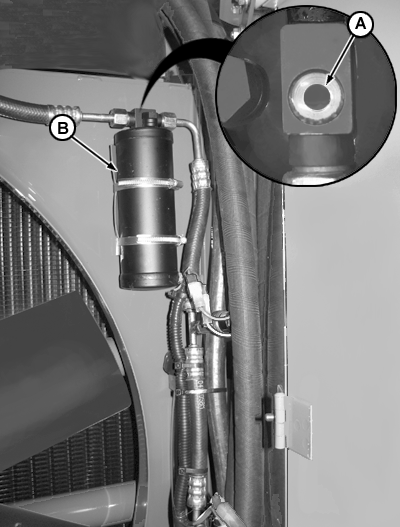

With air conditioning system controls set for maximum cooling and with the engine running, check sight glass (A) at drier filter (B).

If refrigerant appears cloudy or foamy, refrigerant level is low and system should be recharged.

OU64006,00000BB -19-21SEP05-1/1
