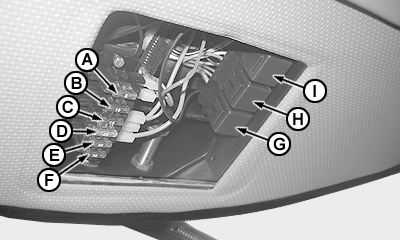

Description of Cab Fuses and Relays
A-Interior cab light fuse (5A)
B-Windshield wiper fuse (10A)
C-Fuse without use (15A)
D-Cab mounted headlights fuse (25A)
E-Air conditioning fan fuse (30A)
F-Air conditioning compressor fuse
G-Relay for headlights and air conditioning operating pressure warning light
H-Windshield wiper and air conditioning relay
I-Air conditioning system fan and compressor relay
|
