Replacing Feeder House Drive Belt

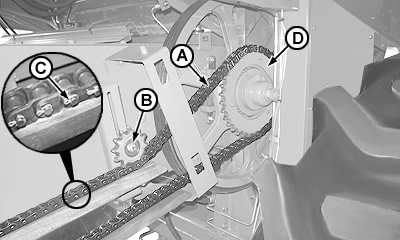

1. Loosen tension of chain (A) through idler (B).

2. Disconnect chain (A) by removing cotter pin (B) and pin (C).

3. Remove chain (A) from sprocket (D).

CQ267910

OU64006,00000BC -19-05APR06-1/6

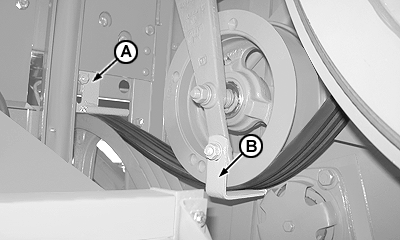

4. Remove guides (A) and (B).

CQ267920

OU64006,00000BC -19-05APR06-2/6

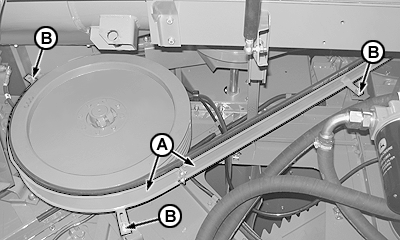

5. Remove bolts (B) and guides (A).

CQ262350

OU64006,00000BC -19-05APR06-3/6

6. Make a mark (C) on the pulley and hub.

NOTE: The mark will be used during installation to ensure balance.

causym CAUTION: The pulley (A) is heavy and awkward to handle. Danger of accidents!

7. Remove bolts (B) and pulley (A).

CQ262370

OU64006,00000BC -19-05APR06-4/6

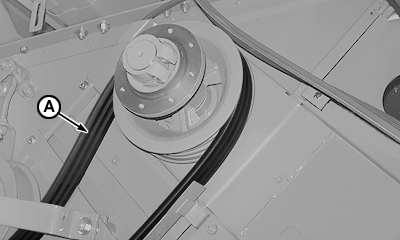

8. Replace belt (A).

CQ268130

OU64006,00000BC -19-05APR06-5/6

9. Install all removed components following reverse procedure of removal. Observe the following points:

  • Install pulley (A), align marks (C) and tighten bolts (B).
  • After installing all components properly, carry out "Adjusting Threshing Unit Drive Belt Guide".
CQ262370

OU64006,00000BC -19-05APR06-6/6
