Threshing Unit Drive-Belt Tension

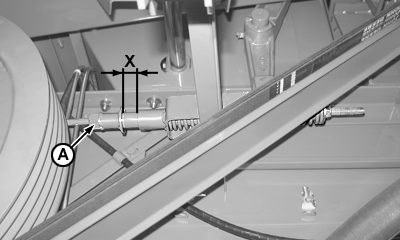

With engine shut off engage threshing unit lever. Belt tension is correct if distance (X) is between 20 and 30 mm. If necessary, readjust tension through adjustment screw (A).

IMPORTANT: Do not apply wax on belt.
