Straw Walker Drive

Belt Drive

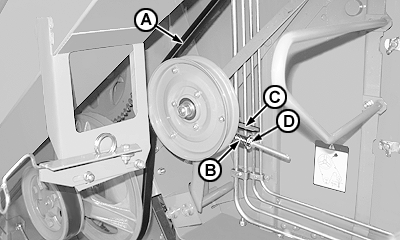

Tension of belt (A) is correct when length of spring (B) is equal to length of tab (C). Adjustment is made by means of nut (D).


A-Belt
B-Spring
C-Indicator Tab
D-Nut

CQ267950

OU64006,00000BF -19-05MAY06-1/2

Chain Drive on Straw Walker Shaft

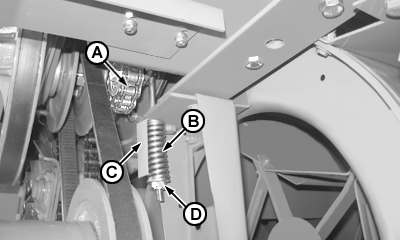

Chain tension (A) is correct when length of spring (B) is equal to length of tab (C). Adjustment is made by means of nut (D).


A-Chain
B-Spring
C-Indicator Tab
D-Nut

CQ267960

OU64006,00000BF -19-05MAY06-2/2
