Changing Hydrostatic Drive Filter and Oil

Change hydrostatic oil and filter according to specified intervals in section Lubrication Chart, Periodic Service".

Filter change

IMPORTANT: Observe utmost cleanliness when installing filter. Install the new filter immediately after removing the used one.

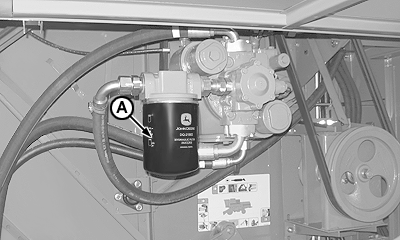

Loosen and remove filter (A).

Dispose of filter properly and replace with a genuine John Deere filter.

For installation of new filter, proceed as follows:

• Coat filter sealing surface with a thin layer of oil.
• Tighten filter by hand until sealing ring comes into contact with filter housing surface and then tighten a further 3/4 to 1-1/4 turns. Do not overtighten.
• Start engine and check for leaks. Retighten filter if necessary.
• Check oil level and refill system if necessary.

Oil change

Preferentially have this service carried out by your local John Deere dealer.

IMPORTANT: Only use recommended oil (see "Fuel, Lubricants and Coolant" section).

OU64006,00000C2 -19-31MAR06-1/1
