Straw Chopper Drive Belt Tension

Tensioning Main Belt

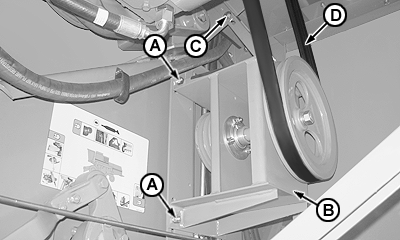

  • Loosen four screws (A) that sustain support (B) of intermediate pulley.
  • Loosen screw (C) of support bracket.
  • Tension belt (D) and retighten previously loosened screws.
CQ268100

OU64006,00000C3 -19-30MAR06-1/2

Tensioning Intermediate Belt

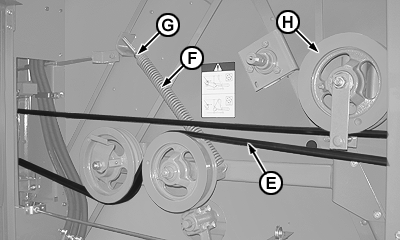

Belt (E) is automatically tensioned by spring (F). Use nut (G) for tension adjustment.

Pulley (H) is not for tensioning. Its only function is to avoid belt misalignment or oscillation.
