Rotating Threshing Cylinder by Hand

CAUTION: Shut off engine and remove starter key before turning back threshing cylinder.

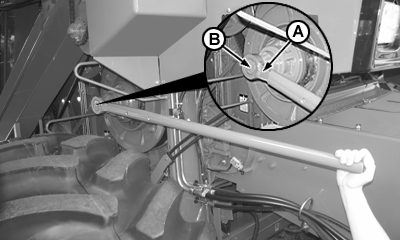

Insert wrench (A) over spline (B) on threshing cylinder shaft.

Turn as required.

NOTE: The wrench is stored in box at rear ladder and the wrench extension is stored next to clean grain elevator housing.
