Operator's Seat

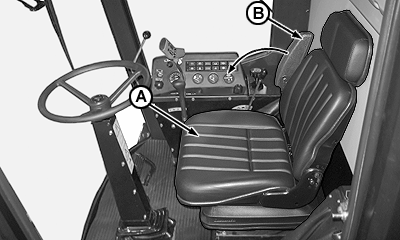

Seat (A) allows for horizontal and weight adjustment and is equipped with an armrest (B) at its right-hand side.

CQ278170

OU64006,00000C9 -19-28AUG06-1/2

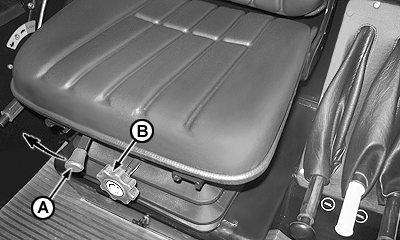

Horizontal adjustment

Move lever (A) as indicated by arrow to adjust the seat closer or more distant to the pedals.

Weight adjustment

Adjust condition that best suits you with knob (B).

CQ251170

OU64006,00000C9 -19-28AUG06-2/2
