OMCQ66653: 1175 Hydro Combine(054574- ), Block File: OU64006_00000CC_19

causym CAUTION: It is forbidden to drive combine on highways or public roads with straw chopper in action.

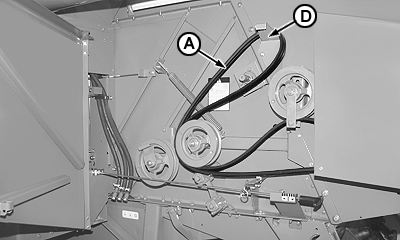

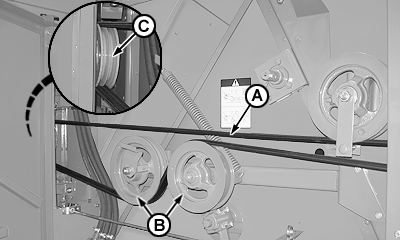

1. Release belt (A) from idler pulleys (B).

2. Release belt (A) from pulley (C) and pass over support (D). Refer to illustration.

OU64006,00000CC -19-17MAR06-1/1
