Straw Chopper-Disengaging and Engaging

Disengaging

1. Move straw distributor to transport position. See "Straw Distributor-Setting to Transport and Operating Position".

2. Remove cotterpin (A) and pin (B) on both sides of combine.

3. Release clip (C) of coupling (D) on both sides of combine.

4. Release coupling (E) on both sides of combine.

5. Set straw chopper (F) to position "Disengaged" and secure with locks (G), as shown.

Engaging

1. Set straw chopper to position "Engaged" using reverse procedure.

2. Set straw distributor to operating position. See "Straw Distributor-Setting to Transport and Operating Position".

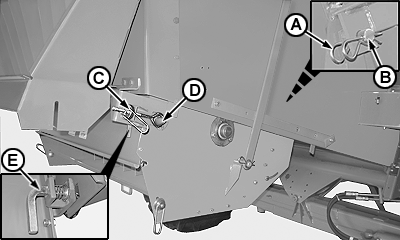

CQ268920

Engaged

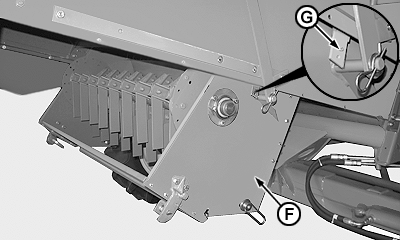

CQ268980

Disengaged
