Adjusting Straw Chopper Counterknives

IMPORTANT: Counterknives should only be moved inwards as far as absolutely necessary to prevent waste of engine power.

Positions of counterknives Utilization in accordance with the type of straw
Shallow angle Dry straw
Slightly angled Wet straw and weeds
Fully angled Rape and bean straw in general

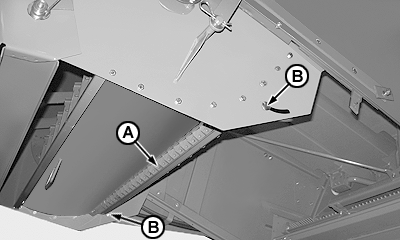

To adjust the counterknives (A), loosen screws (B) on both sides.

CQ269060

OU64006,00000D2 -19-27MAR06-1/1
