Compressed Air System Reservoir

The front axle is the reservoir.

Maximum pressure: 570 kPa; 5.7 bar; 82.7 psi.

Drain off impurities periodically.

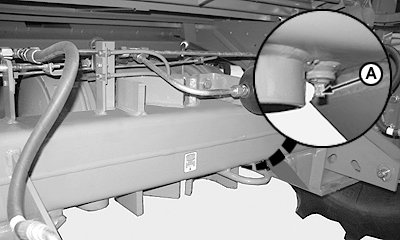

With the engine off, drain accumulated water by turning the drain plug (A) located on the lower left side of the front axle.
