Cab Controls
NOTE:
Cab and combine electrical systems are independent. Lights, fan, windshield wiper and radio will operate without main key switch activated.

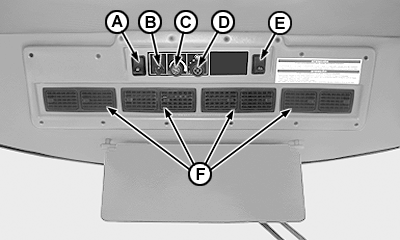

A-Cab work lights switch
B-Air conditioning pressure indicator light
C-Rotary switch for air conditioning temperature adjustment (thermostat)
D-Rotary switch for fan speed adjustment
E-Windshield wiper switch
F-Adjustable air louvers of fan
|
