Engaging Air Conditioning

IMPORTANT: Before switching on air conditioning system, fan must be activated by means of switch (D). Air conditioning will not work if fan is not switched on.

System is switched ON if switch (C) is turned clockwise.

Turning clockwise will reduce cab interior temperature.

Indicator light (B) will come on if air pressure is below or above normal operating values. Switch off system immediately and check cleanliness of radiator.

After cleaning, switch on system again and check if indicator light remains on.

NOTE: If you want to bring down cab interior temperature quickly, turn fan switch (D) to position (II), then turn air conditioning switch (C) clockwise.

CAUTION: Never turn fan switch (D) from position (III) to position (I) with air conditioning switch (C) at maximum. This could freeze the air conditioning evaporator.

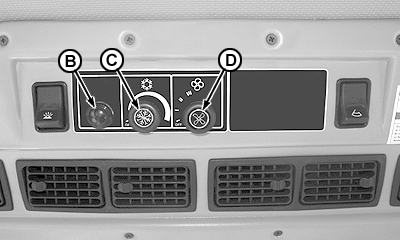

B-Indicator light
C-Air conditioning switch
D-Fan switch

OU64006,00000E0 -19-21SEP05-1/1
