Adjusting Floating Drum Height

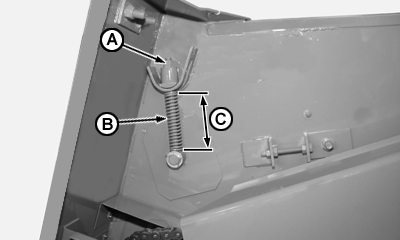

Adjust the height of spring (B) with nuts (A) on both sides of the feeder house.

Crop Spring length (C):
For corn 107-113 mm (4.2-4.45 in.)
For other crops 137-143 mm (5.39-5.63 in.)




A-Adjusting Nuts
B-Spring
C-Spring length
