Checking Drive Wheel Alignment

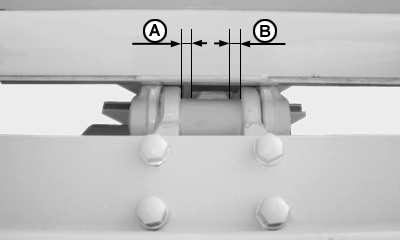

On a flat surface, move the combine about 10 to 15 m in a straight line. Then check distances (a and b). For the drive wheel to be aligned with the steel track chain link, these distances must match.

NOTE: If distances (a and b) are different, contact the dealer from whom the combine was purchased. Misalignment between the chain link and the drive wheel causes wear on the sides of the guide wheels and the drive wheel itself.
