Combine Ladder Adaptation

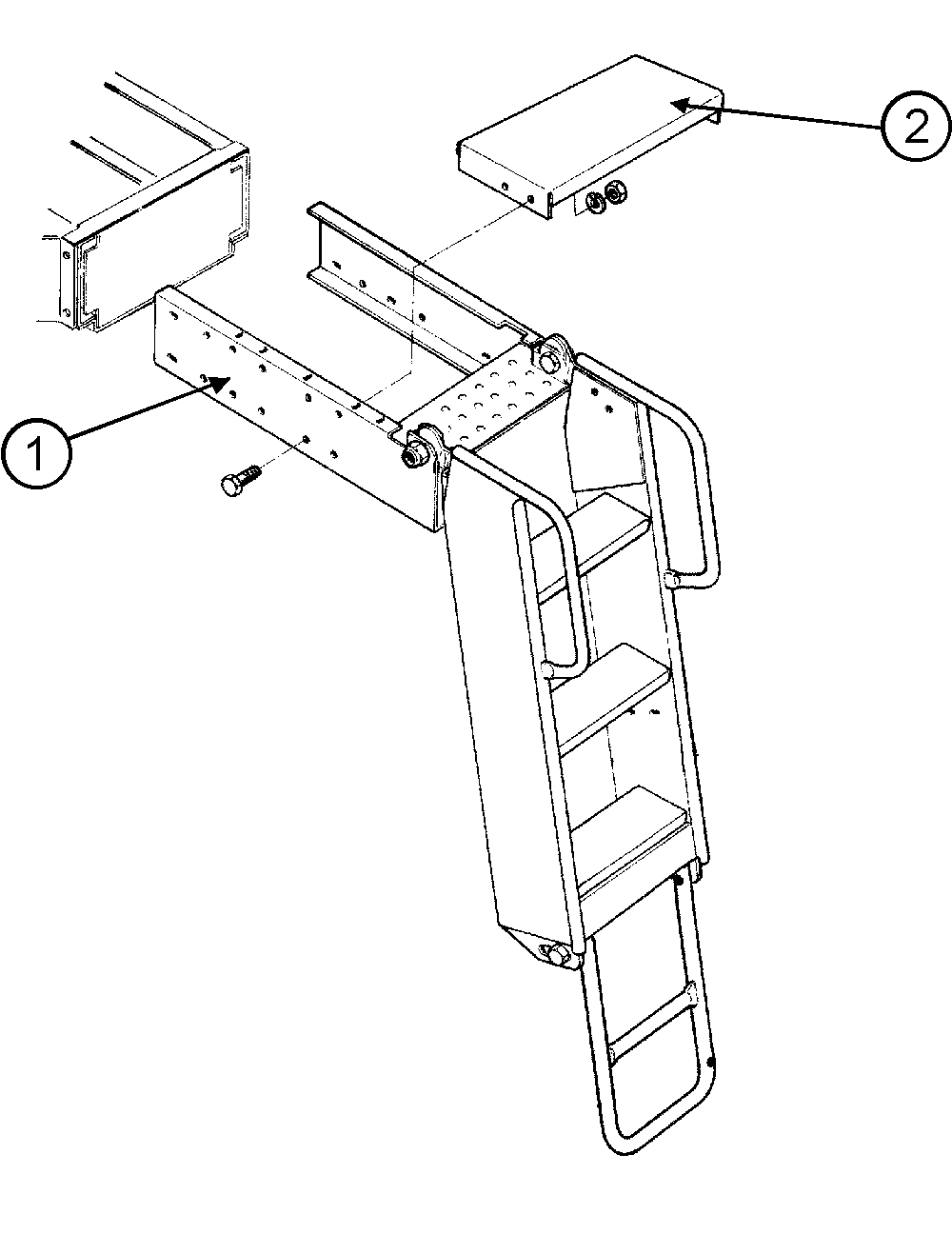

Loosen the bolt that fastens the base (1) of the ladder and then pull it so as to allow fastening a supplementary step (2) with four bolts M10 x 16. Finish by fastening the base (1).

CQ218670

OU83340,00003EA -19-07NOV03-1/1
