Checking Parallelism Between Steel Tracks

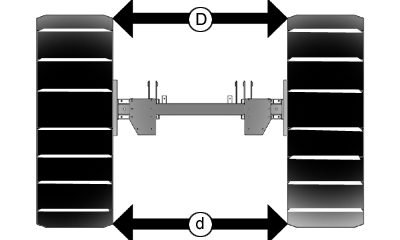

Check distances (D and d), measuring them on points indicated by arrows. These distances must be equal.

IMPORTANT: If distances (D and d) are different, contact the dealer from whom the combine was purchased.

OU83340,00003EB -19-02AUG04-1/1
