2.

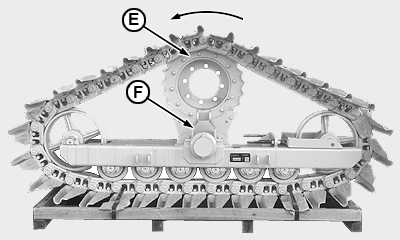

Considering turning direction, approximate steel track to final drive, propping up drive wheel (E).
3.

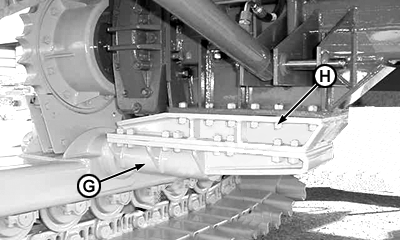

Position support axle (G) correctly on combine front axle by attaching it with twelve bolts (H) to following torque:
Specification
|
Steel track support axle bolts
-Torque
|
240 N·m (175 lb-ft)
|
4.
Then attach steel track drive wheel to bolts and tighten to following torque:
Specification
|
Drive wheel bolts
-Torque
|
420 N·m (305 lb.ft)
|
5.

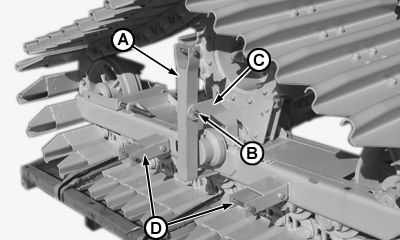

Remove supports (previously positioned) from steel track lifting points and support (F).
6.
Repeat Combine wheel removal and steel track fastening procedure on other side of machine.
Lower Combine front axle to the ground.
|
