Cleaning the Paper Filtering Element

Provisional Cleaning

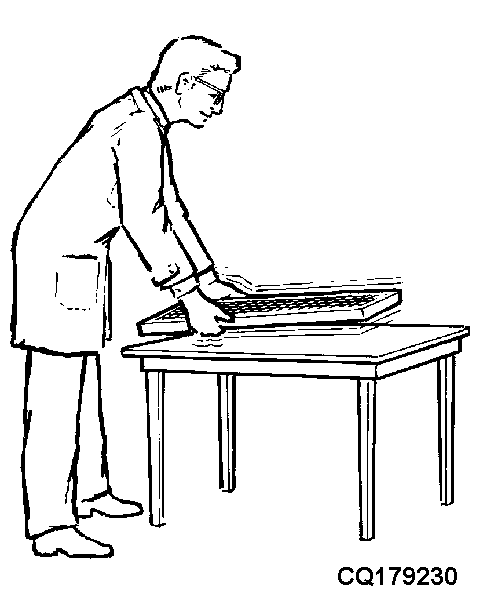

As a provisional measure during operation, tap the element on palm of hand or on a flat soft surface.

OU83340,0000448 -19-24OCT03-1/2

Cleaning with Compressed Air

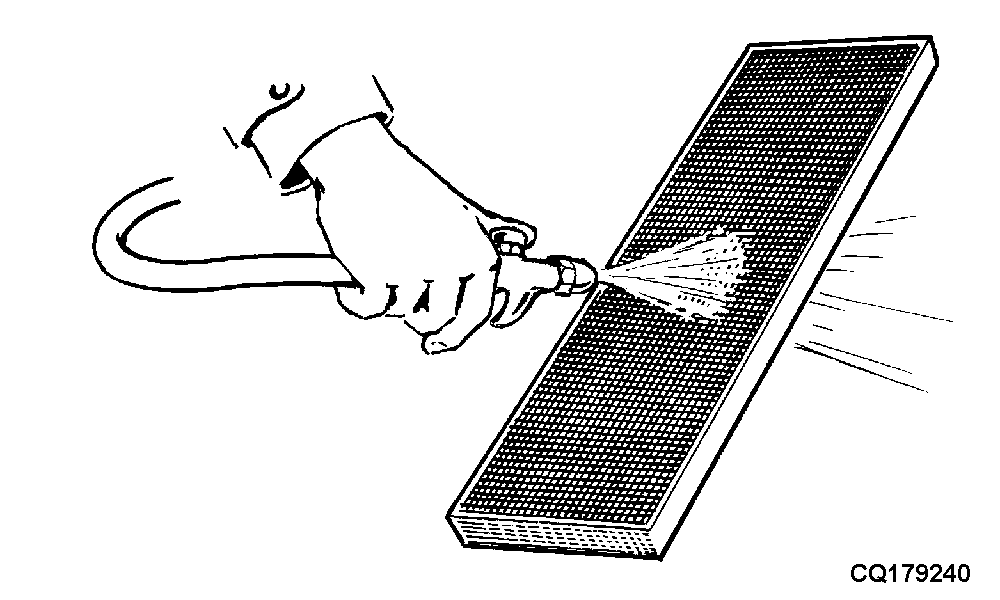

Direct the air stream over the filter in the opposite direction to the arrows on it with a maximum pressure of 7 bar (100 psi).

OU83340,0000448 -19-24OCT03-2/2
