Headlight Use

Double intensity headlights (A) are turned on by switching to "Field Lights" (D), "High beam" (E) and "Low Beam" (F).

Always use low beam when other vehicles are present.

Keep headlight properly adjusted. (See headlight adjustment in "Service" section).

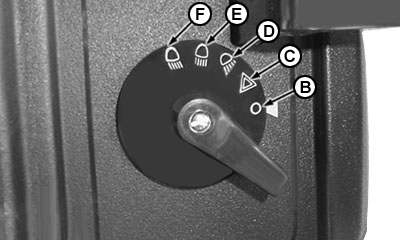

A-Headlights
B-Lights OFF
C-Hazard warning lights
D-High beam, tail light
E-High beam, clearance light and hazard warning light
F-Low beam, clearance light and hazard warning light

AG,LT04177,131 -19-30NOV06-1/1
