Adjusting the Seat Suspension

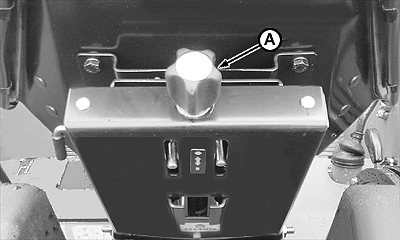

Twist the adjustment knob (A) to compensate for the operator's weight. The weight marks are the recommended adjustment positions that allow the seat suspension system to use all of its vertical travel.
