Hydraulic Outlet Connections

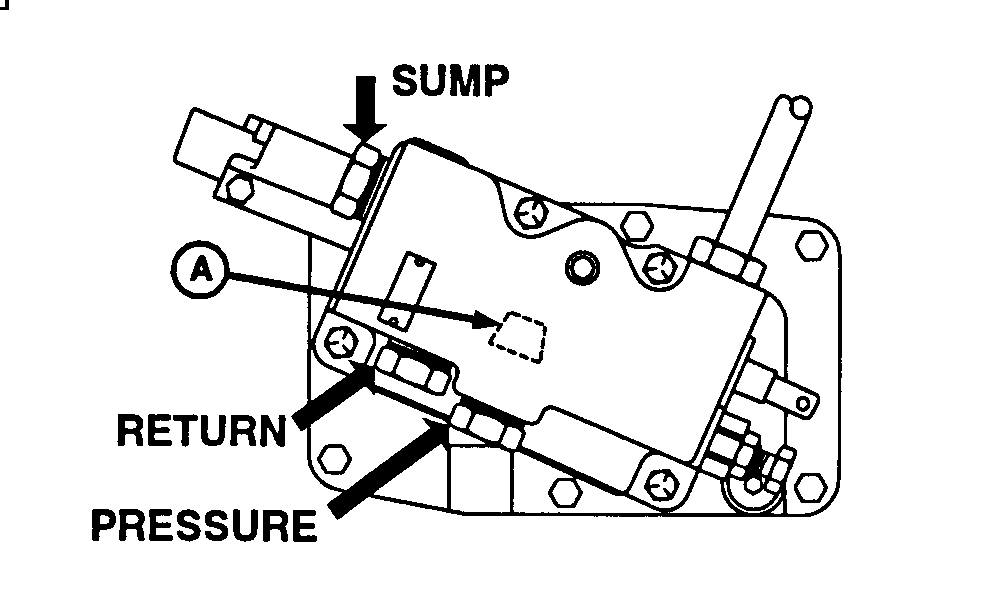

The SCV and rockshaft valve can be adapted to have a connection for the remote hydraulic functions to the tractor hydraulic system. Your John Deere dealer can supply the parts that provide connections to the lines and divert the normal flow of oil with the plug (A).

Make sure the hydraulic functions to be connected are compatible with the open center 0.75 l/s and the 19,000 kPa (190 bar; 2850 psi) capacity systems.
The maximum pressure of the hydraulic system is limited by the tractor main relief valve and cannot be increased by the use of remote valves (external relief valves). It is not necessary to install external relief valves unless a lower release pressure is required.

A-Plug
