Operating PTO at Correct Speed

NOTE: Engine will not start if PTO clutch lever is engaged.

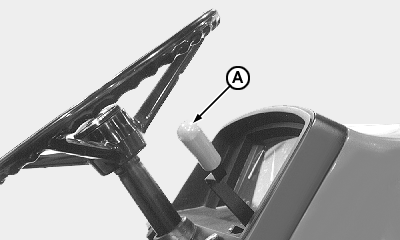

1. Press clutch pedal, start engine and push hand throttle (A) forward until tachometer indicates PTO speed at 1700 rpm (B) for 540E operation or 2400 rpm for standard 540 operation.

NOTE: Engine speed is mechanically controlled for a maximum of 1700 rpm in 540E position. 540E operation should not be engaged if engine speed is above 1700 rpm.



A-Hand throttle

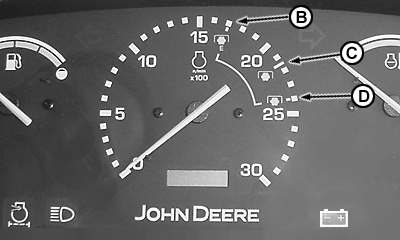

B-540E operating speed
C-540 rpm at PTO for tractors without economy option
D-Standard 540 rpm operating speed

CQ279469
CQ281057

AG,LT04177,201 -19-12SEP07-1/2

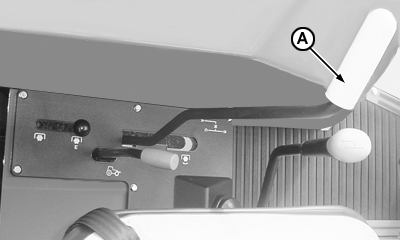

2. Move control lever (A) inwards and forwards to engage PTO. PTO indicator (B) should light up when PTO is engaged.
3. Move control lever backwards to disengage PTO.

causym CAUTION: Disconnect key switch to turn off engine and make sure all mechanisms are stopped before cleaning the machine or making adjustments to any PTO driven implement.
