Selecting Tire Turning Direction

1. Under most conditions, the front tires should be installed so that their grips combine with the tire turning direction.
2. If the tractor is mainly used with a front loader, the grip direction can be inverted, to lessen tire wear.

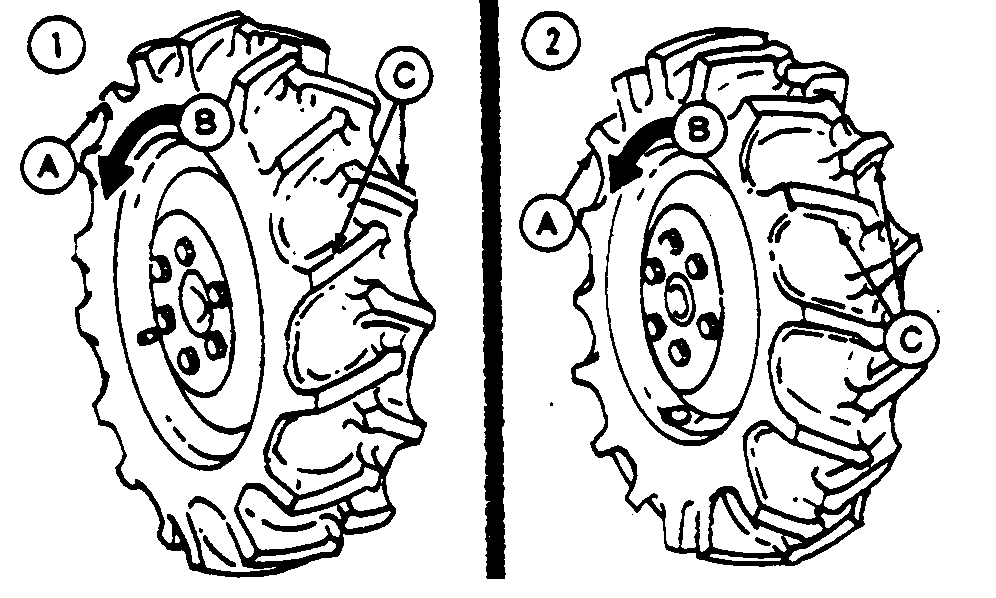

A-Rear view of left hand tire
B-Tire turning direction
C-Grips

RW510

AG,LT04177,221 -19-18APR05-1/1
