Driving Tractor On Public Roads

CAUTION: When driving the tractor on public roads, take the following precautions:

Before driving on public roads, make sure hazard warning lights (A) are in proper working condition. Confirm that other safety equipment is in good working condition for road use.

AG,LT04177,240 -19-15JUN06-1/4

CAUTION: NEVER turn on rear work light when driving tractor. The rear light is intense and could cause motorists approaching from the rear to lose road vision.

IMPORTANT: Consult "Lights" section of this manual for detailed descriptions of light use and functions.

Move light switch (C) to warning position, high beam, or low beam. Do not use rear work lights turned on. Use low beam for oncoming traffic. Keep headlights properly adjusted.

Use left or right indicator lights when turning. Make sure to return signal lever to original position once turn is completed.

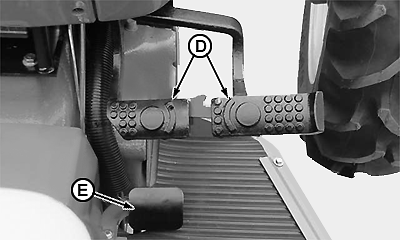

Before driving the tractor on public roads, couple brake pedals (D). Avoid sudden braking.

A-Steering wheel
B-Hand throttle
C-Light Switch
D-Brake pedals
E-Foot throttle
F-Main switch
G-Clutch pedal
H-Turn-signal light switch

AG,LT04177,240 -19-15JUN06-2/4

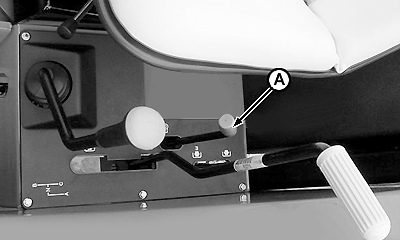

Disconnect front-wheel drive (A) (if equipped) when driving on public roads. Excessive front tire wear will result from transporting on hard surfaces with front wheel drive engaged.

Drive at moderate speeds to maintain safe control at all times. Reduce speed on uneven ground or when negotiating tight turns, especially when transporting rear-mounted, heavy implements.

Before a descent, shift to a suitable gear in order to control the speed without needing to use the brakes. NEVER freewheel down a descent, or with tractor in neutral. Take special care if the descent has a loose gravel surface or whatever other factor which may affect safety.

AG,LT04177,240 -19-15JUN06-3/4

CAUTION: Braking to slow down towed loads traveling at transport speed can cause a to and fro movement and even roll over. Reduce speed if the towed load is heavier than tractor and does not have its own braking system. Follow the following recommendations for speed and weight:

- When towing loads with a weight equal to or less than tractor, do not exceed maximum speed of 32 Km/h (19.9 mph).

Reduce speed to 16 Km/h (9.9 mph) when towing loads up to twice as heavy as tractor.

Do not tow loads more than double the tractor weight.

Take additional care when towing loads in adverse conditions, on tight bends and on descents.

Pay special attention when driving tractor at transport speed. Reduce speed if load is heavier than tractor and does not have its own braking system. (See Operator's Manual of implement, to consult recommended transport speeds).

Take additional care when transporting loads under adverse conditions, irregular surfaces, tight bends or when braking on descent.

Heavy rear-mounted or towed implements may suffer to and fro movement during transport. Excessive to and fro movement may cause loss of steering control. Drive slowly and avoid sudden steering wheel maneuvers. Consult Operator's Manual for implement to check maximum speed limits.

AG,LT04177,240 -19-15JUN06-4/4
