Bleeding Off Water and Sediment from Fuel Tank

NOTE: Place a small container under the tap to collect spilt fuel.

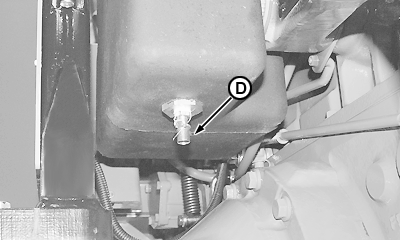

Open tap (D) of fuel tank to bleed off accumulated humidity and fuel tank residue. Close tap when clean fuels starts to come out.

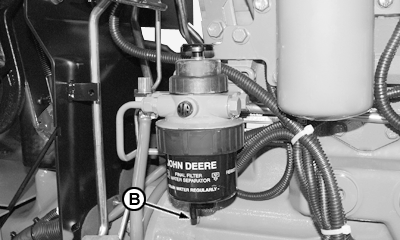

Open drain valve of fuel filter (B) to bleed off humidity and sediment accumulated in the filter. Close tap when clean fuels starts to come out.

CQ267250
CQ267260

Right Hand Lateral Engine View - Bleeding Off Accumulated Residue

AG,LT04177,264 -19-13MAR06-1/1
