Lubricating Linkage Pin of 4x4 Front Axle

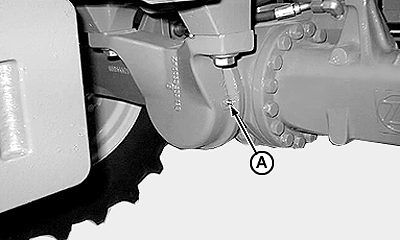

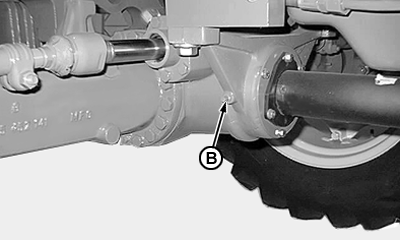

Lubricate front linkage pin (A) and rear pin (B) of front axle, with universal grease.

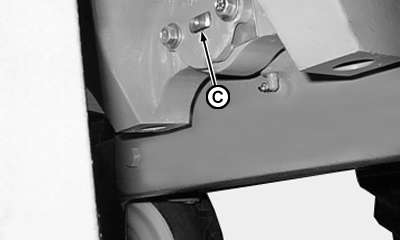

Pin (C) of adjustable axle also requires lubrication on its front and rear pivot fittings, with universal grease (See "Fuel, Lubricants and Coolant" section).

CQ161630
CQ161640
CQ161650

AG,LT04177,268 -19-15JUN06-1/1
