Checking Free Travel of Clutch Pedal

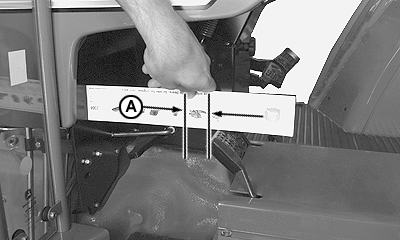

1. Press clutch pedal until resistance is felt. Measure play (A).

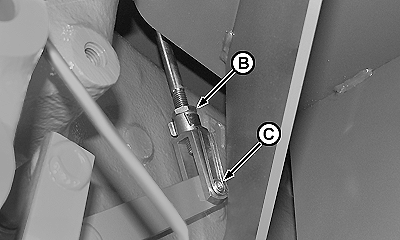

2. If play does not meet specifications, loosen nut (B), remove clamp and pin (C) and turn adjustment yoke as necessary.

Specification

Clutch Pedal Play -5605/5705 Tractor 25 - 35 mm (0.984 - 1.377 In)

CQ262670
CQ261900

AG,LT04177,276 -19-13MAR06-1/1
