Checking Hose and Clamp Tightness

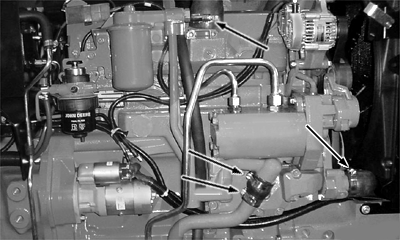

Check clamp tightness of the following hoses:

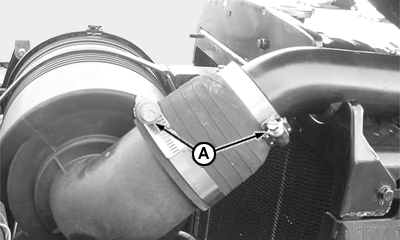

• Between air filter and intake (A).
• Cooling system
• Hydraulic system
• Fuel system

Check hoses for cracks which could cause leaks. Replace if necessary.

AG,LT04177,284 -19-13MAR06-1/1
