Change Transmission and Hydraulic System Oil

IMPORTANT: Whenever changing Transmission/Hydraulic System oil, also change oil filter (see "Service-Every 250 hours " section).

Remove transmission housing drain plug (A) and drain oil. For tractors with 4X4 front-wheel drive, remove drain plug (B) on intermediate housing. Lower 3-point hydraulic hitch to remove oil from circuit.

Remove filter (C). Apply a film of oil to edge of new filter and install it. Tighten by hand.

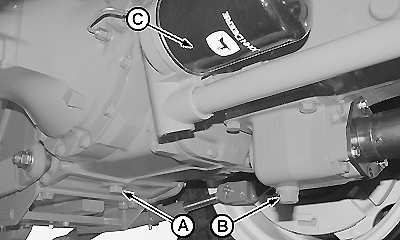

A-Transmission drain plug
B-MFWD drive drain plug
C-Hydraulic/transmission filter

AG,LT04177,288 -19-16JUN06-1/1
