Replacing the Fuel Filter

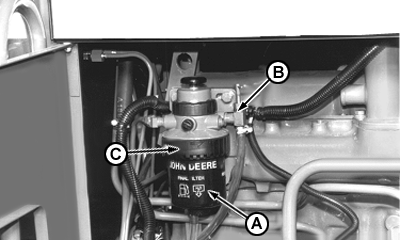

Change element (A) at least once a year.

1. Close the fuel shut-off valve (B).
2. Remove the retaining ring (C) and the filter.
3. Install the new filter with the retaining ring, tightening it by hand.
4. Open the fuel shut-off valve and bleed the air from the filter (see "Bleeding the Fuel System" in "Service" section).

CQ161920

AG,LT04177,308 -19-27MAY03-1/1
