Access to the Battery

The battery is located in front of the radiator.

To gain access:

1. Raise the hood.

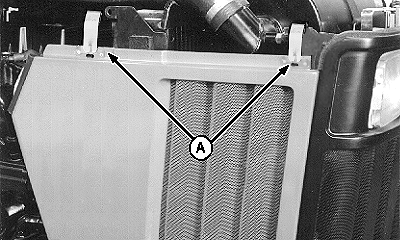

2. Turn the clips (A) and remove the side screens (see "Removing the Side Screens" in this section).

AG,LT04177,316 -19-30OCT98-1/1
