Fuse Location

All the electrical circuits are protected by fuses (except for the starting motor). The current capacity is marked on each fuse and the fuses are also color-coded to ensure their correct installation.

Fuse capacity Color
10 Amperes Red
20 Amperes Yellow
30 Amperes Green



IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage may occur. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

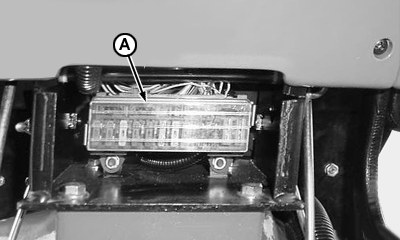

CQ208320


A-Fuse box
