Controls and Instruments

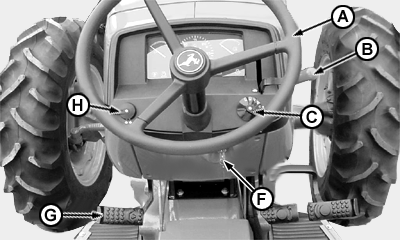

  • A - Steering wheel
  • B - Hand throttle
  • C - Lights switch

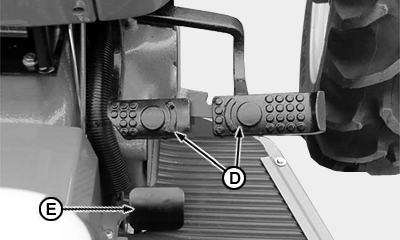

  • D - Brake pedals
  • E - Foot throttle pedal
  • F - Starter switch
  • G - Clutch pedal
  • H - Turn-signal switch
CQ208440
CQ208330

GB52027,000000F -19-29NOV06-1/2

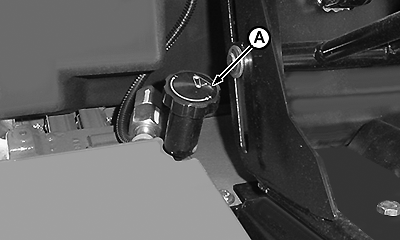

  • A - Rate of drop control valve of hydraulic hitch

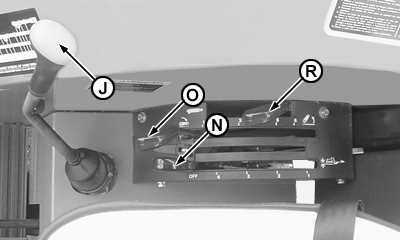

  • J - Gearshift Lever

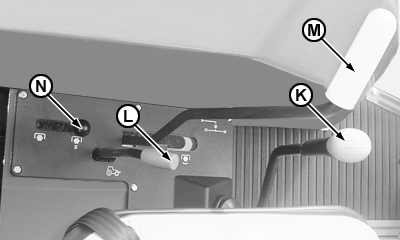

  • K - Range shift lever
  • L - Front-wheel drive lever
  • M - PTO clutch lever
  • N - Hydraulic hitch control lever
  • O - Hydraulic hitch position control lever

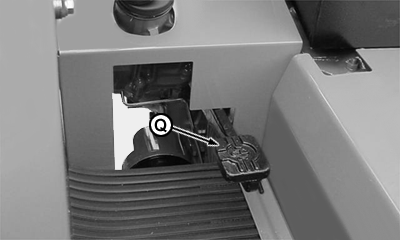

  • Q - Differential lock pedal
  • R - Selective control lever (optional)
CQ208110
CQ279296
CQ279295
CQ208150

GB52027,000000F -19-29NOV06-2/2
