Using Turn Signal

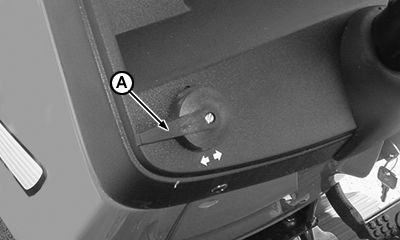

Move turn signal lever (A) to the left-hand side to indicate a left hand turn.

Move turn signal lever (A) to the right-hand side to indicate a right hand turn.

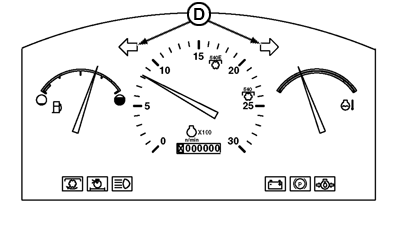

Indicator lights (D) flash to indicate turn direction.

When the lever is moved to the left-hand side, the left-hand signals flash and the right-hand signals light up. When the lever is moved to the right-hand side the opposite occurs.

NOTE: Do not forget to return lever to normal position after completing maneuver.

GB52027,0000017 -19-29NOV06-1/1
