Up to 75% of tire capacity may be used for liquid ballast.
-
Never use more than 75% of tire capacity for liquid ballast in front tires, otherwise the available space for tire deformation will be excessively reduced, causing hardening and subsequent damage to tire.
-
To ballast front and rear tires at 75%, position tire valve in upper position (12 o'clock).
| Tire size |
25% water (kg/lb) |
40% water (kg/lb) |
75% water (kg/lb) |
| 7.50-18F2 |
12 (26) |
19 (42) |
37 (82) |
| 8.3-24R1 |
16 (35) |
25 (55) |
48 (106) |
| 12.4-24R1 |
37 (82) |
60 (132) |
113 (249) |
| 13.6-38R1 |
71 (157) |
114 (251) |
215 (474) |
| 14.9-24R1 |
59 (130) |
94 (207) |
177 (390) |
| 14.9-28R1 |
66 (146) |
106 (234) |
200 (441) |
| 16.9-30R1 |
92 (203) |
147 (324) |
276 (608) |
| 18.4-30R1 |
110 (243) |
176 (388) |
330 (728) |
| 23.1-26R2 |
161 (355) |
258 (569) |
484 (1067) |
| 23.1-30R1 |
180 (397) |
288 (635) |
541 (1193) |
Tire inflation pressure and weight
See "Weight per Tire x Inflation Pressure" in Section 70.
|

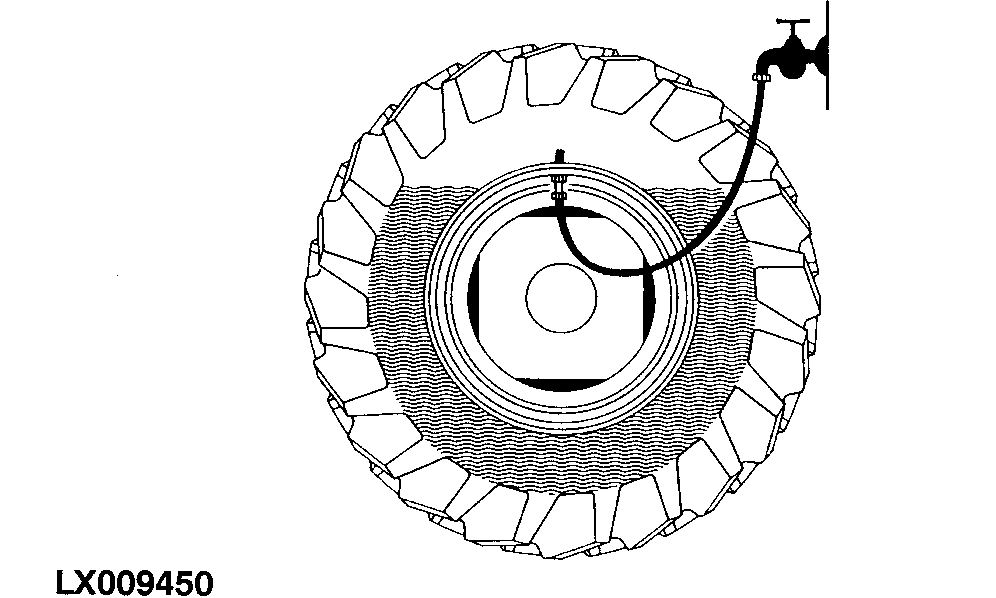

75% water, valve at 12 o'clock position
|
