Adjusting Tread -Two Position Steel Wheels

Rear wheel tread

Front tread

Wheel tread can be adjusted changing the wheel from one side to the other, installing spacers.

The following charts provide the relevant wheel information:

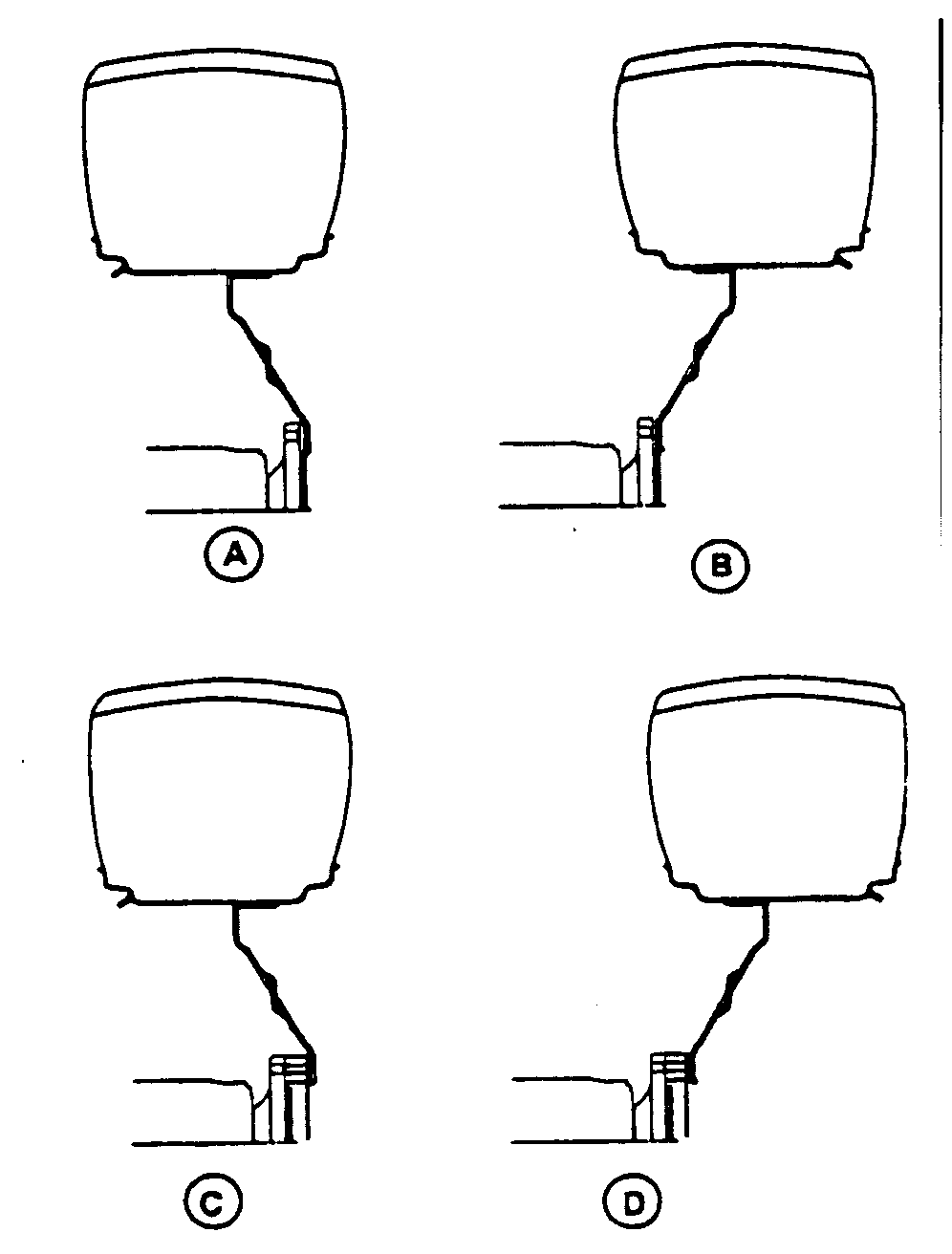

Diagram Distance between center lines (mm)
A Interference (do not use)
B 1530 mm (60.3 in.)
C 1605 mm (63.2 in.)*
D 1733 mm (68.2 in.)*



*Requires spacer of 102 mm (4.0 in.).

(See your John Deere dealer)

IMPORTANT: After adjusting space between rear wheels, tighten bolts between disk and hub to 180 N·m (130 lb-ft). Drive tractor about 100 m (398 ft 96 in.) and retighten to specification.

Front-Wheel Drive 4 X 4 (55° angle of turn)


Diagram 7.50-16 Tire
A 1549 mm (61.0 in.)
B 1710 mm (67.3 in.)



IMPORTANT: After adjusting space between front wheels, tighten nuts between disk and hub to 300 N·m (220 lb-ft). Drive tractor about 100 m (398 ft 96 in.) and retighten to specification.

M47178

GB52027,0000040 -19-29JUN06-1/1
