Adjusting 4x4 Front Tread with Reversible Rims

4 x 4 front axle tread with reversible rims can be adjusted repositioning or changing the rims or inverting wheel disks.

The tread can also be adjusted switching the whole wheel to opposite side of tractor. (This maneuver allows a concave to convex wheel position change without having to disassemble them).

When changing rear wheels from one side to other of front axle with front-wheel drive, the arrow on side of tire must be pointing in direction of forward travel.

The relation between wheel disk and rim, according to required treads, is illustrated on the following page.

Carefully study diagrams before changing tread as this will reduce effort when performing this task.

IMPORTANT: After adjusting space between front wheels, tighten nuts between disk and rim and between disk and hub. Drive tractor about 100 meters (398 ft 96 in.) and retighten to specification.

Specification

Disk to hub -Torque 300 N.m (220 lb-ft)
Rim to disk -Torque 245 N·m (180 lb-ft)

NOTE: Tread adjustment is measured at the lower part of the center line.

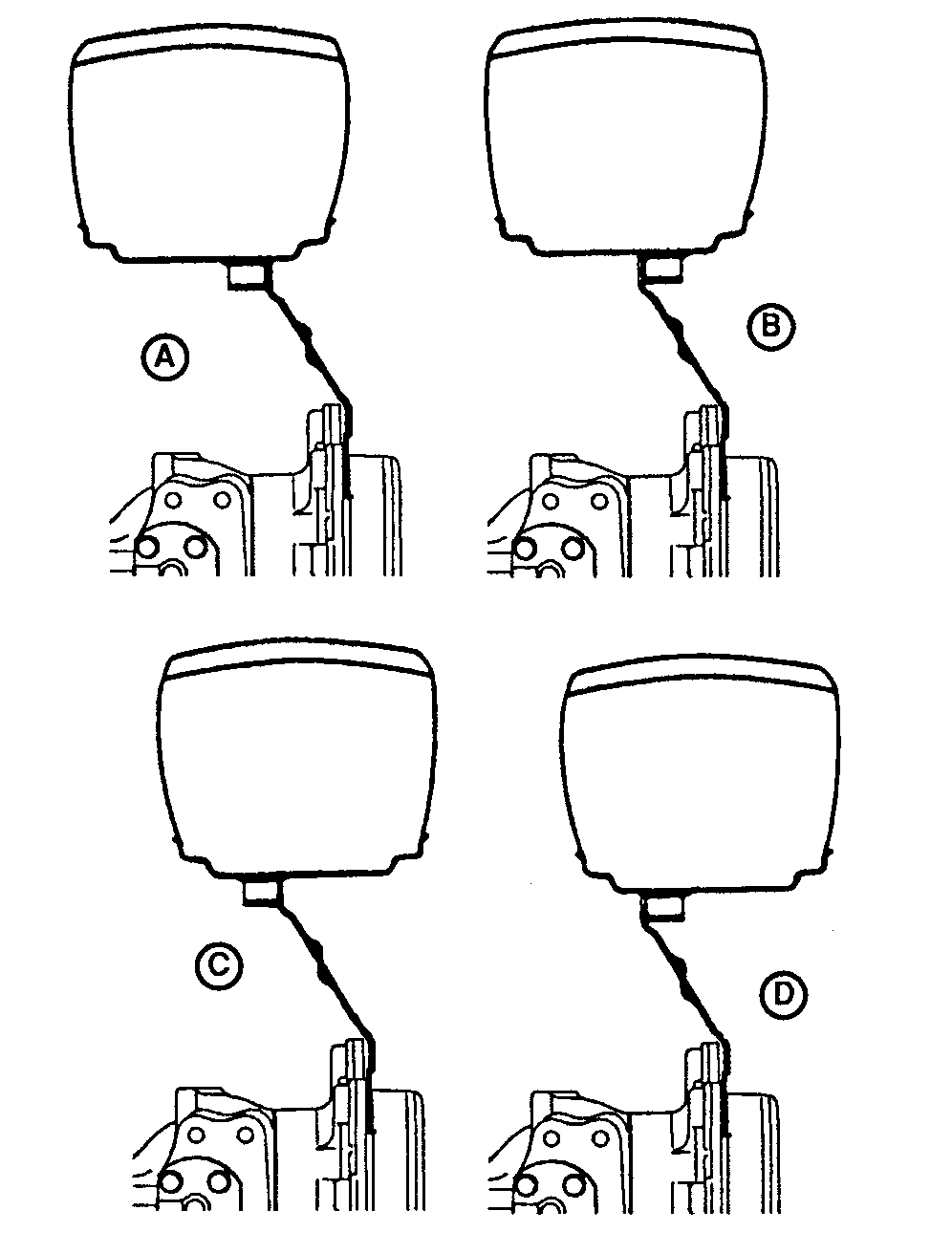

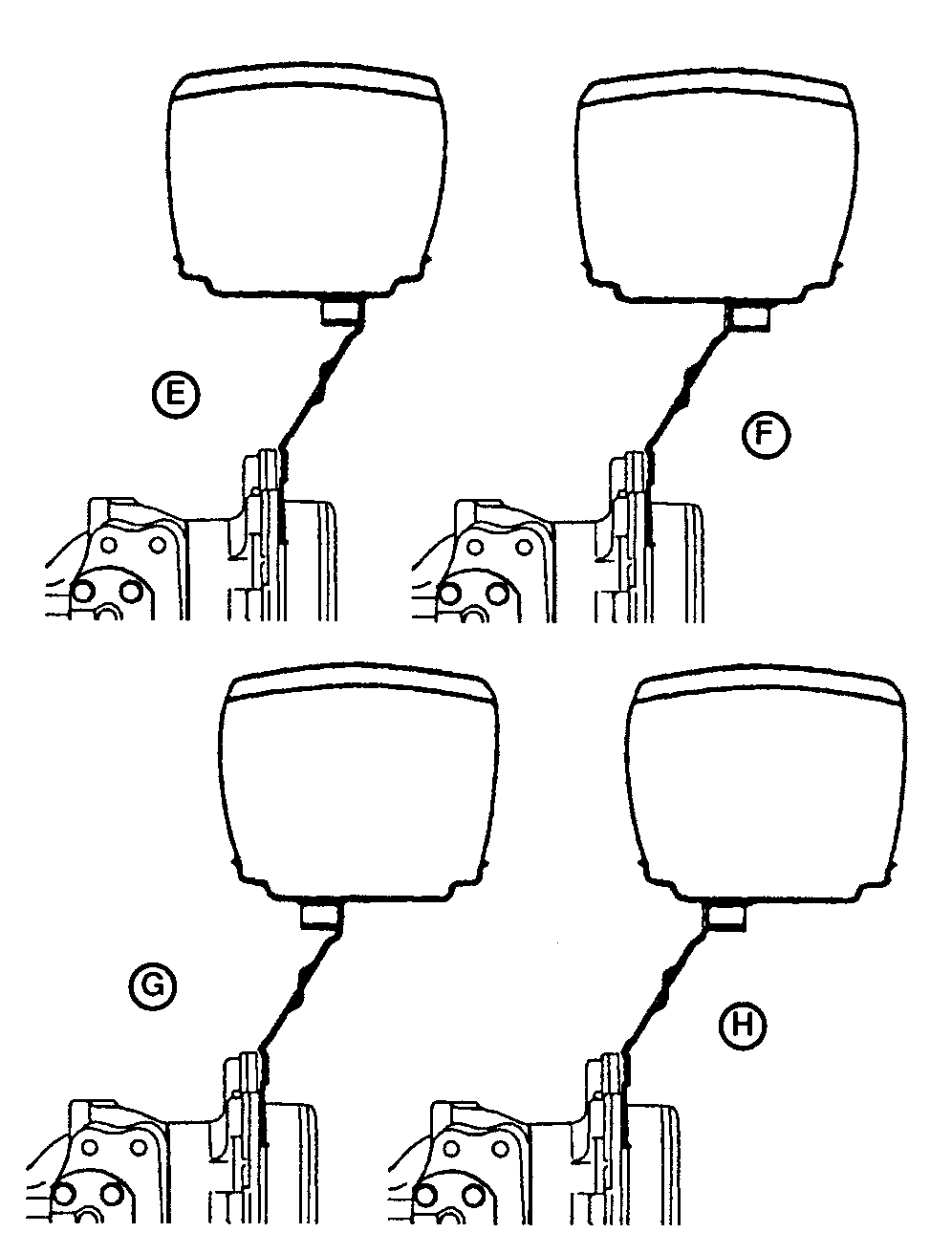

4x4 axle treads
Tires 12.4-24
A 1226 mm (48.3 in.)
B 1345 mm (53.0 in.)
C 1420 mm (55.9 in.)
D 1538 mm (60.6 in.)
E 1646 mm (64.8 in.)
F 1765 mm (69.5 in.)
G 1840 mm (72.4 in.)
H 1958 mm (77.1 in.)



NOTE: Positions A and B may result in tire interfering with some part of tractor when steering wheel is fully turned.

LV601
LV602

GB52027,0000042 -19-29JUN06-1/1
