Adjusting Toe-In-4x4 Axle

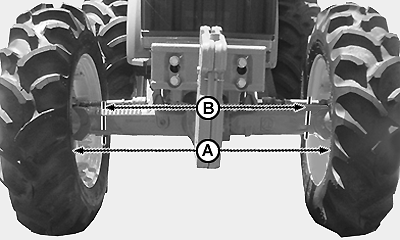

Measure height of front part of front axle and behind the wheel between rim edges.

1. Measure distance (A).
2. Rotate front wheels 1/2 turn.
3. Measure distance (B) at the same point at which distance (A) was measured.

Distance (A) should be between 0 and 3 mm (0 to 0.12 in.) lower than rear distance.

GB52027,0000043 -19-29JUN06-1/1
