Adjusting Toe-In-4x4 Axle
1.

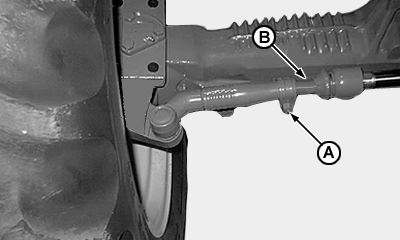

Loosen nuts (A) on both ends of coupling bar.
2.
Equally adjust both sides by turning internal rod (B) to increase or decrease length of coupling bar as necessary, until toe-in of 3 mm (0.12 in.) is obtained.
| Coupling bar rotation |
Approximate adjustment |
| 1/2 turn |
0.75 mm (0.03 in.) |
| 1 turn |
1.5 mm (0.06 in.) |
| 2 turns |
3 mm (0.12 in.) |
3.
Tighten nuts once adjustment is completed.
|
